Technical Details

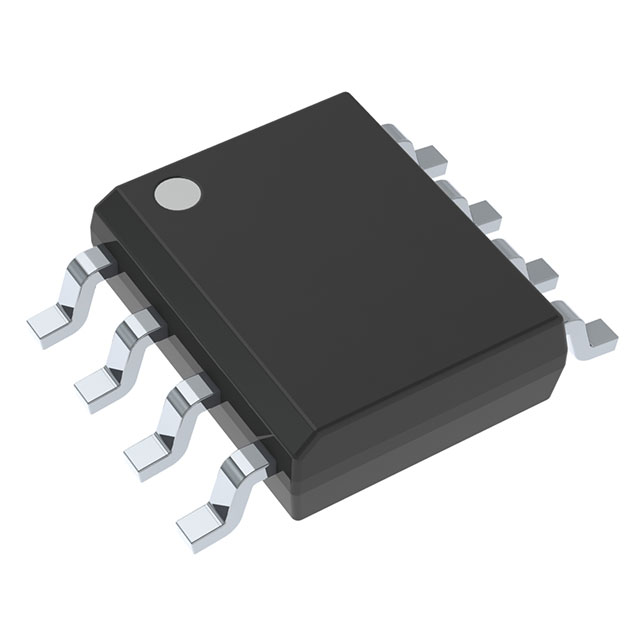

• Package / Case 8-SOIC (0.154", 3.90mm Width)
• Output Type Single Ended, Rail-to-Rail
• Mounting Type Surface Mount
• Amplifier Type Chopper (Zero-Drift)
• Operating Temperature -40°C ~ 125°C (TA)
• Current - Supply 570µA (x2 Channels)
• Slew Rate 2.8V/µs
• Gain Bandwidth Product 5.7 MHz
• Current - Input Bias 30 pA
• Voltage - Input Offset 250 nV
• Supplier Device Package 8-SOIC
• Number of Circuits 2
• Current - Output / Channel 55 mA
• Voltage - Supply Span (Min) 1.7 V
• Voltage - Supply Span (Max) 5.5 V
