Technical Details

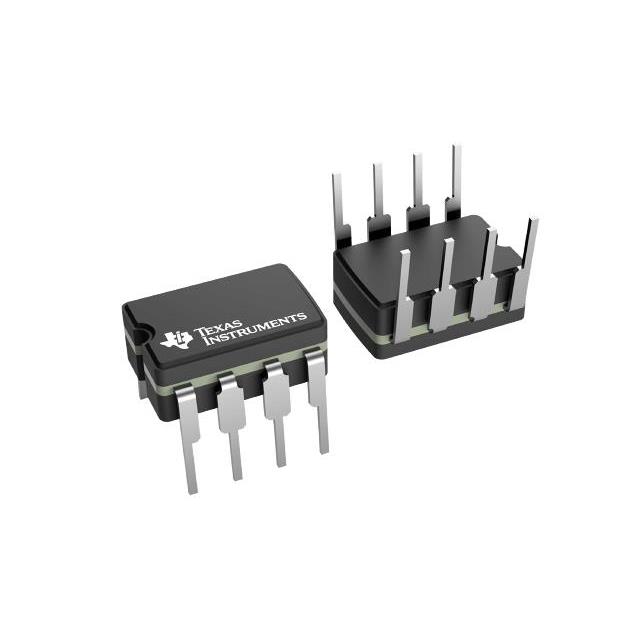

• Package / Case 8-CDIP (0.300", 7.62mm)
• Output Type Open-Collector, Rail-to-Rail
• Mounting Type Through Hole
• Number of Elements 2
• Type General Purpose
• Operating Temperature -55°C ~ 125°C
• Voltage - Supply, Single/Dual (±) 2V ~ 30V, ±1V ~ 15V
• Supplier Device Package 8-CDIP
• Propagation Delay (Max) 1.3µs (Typ)
• Current - Quiescent (Max) 1mA
• Voltage - Input Offset (Max) 5mV @ 30V
• Current - Input Bias (Max) 0.1µA @ 5V
• Current - Output (Typ) 6mA @ 5V
