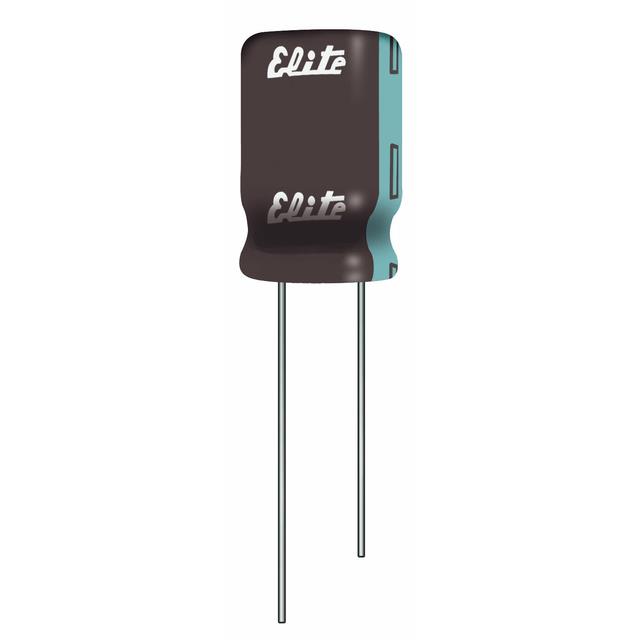

Technical Details

• Tolerance ±20%
• Package / Case Radial, Can
• Size / Dimension 0.394" Dia (10.00mm)
• Polarization Polar
• Mounting Type Through Hole
• Operating Temperature -40°C ~ 105°C
• Applications General Purpose
• Lead Spacing 0.197" (5.00mm)
• ESR (Equivalent Series Resistance) 97mOhm @ 120Hz
• Lifetime @ Temp. 4000 Hrs @ 105°C
• Height - Seated (Max) 1.043" (26.50mm)
• Capacitance 2200 µF
• Voltage - Rated 16 V
• Impedance 26 mOhms
• Ripple Current @ Low Frequency 1.572 A @ 120 Hz
• Ripple Current @ High Frequency 2.62 A @ 100 kHz
