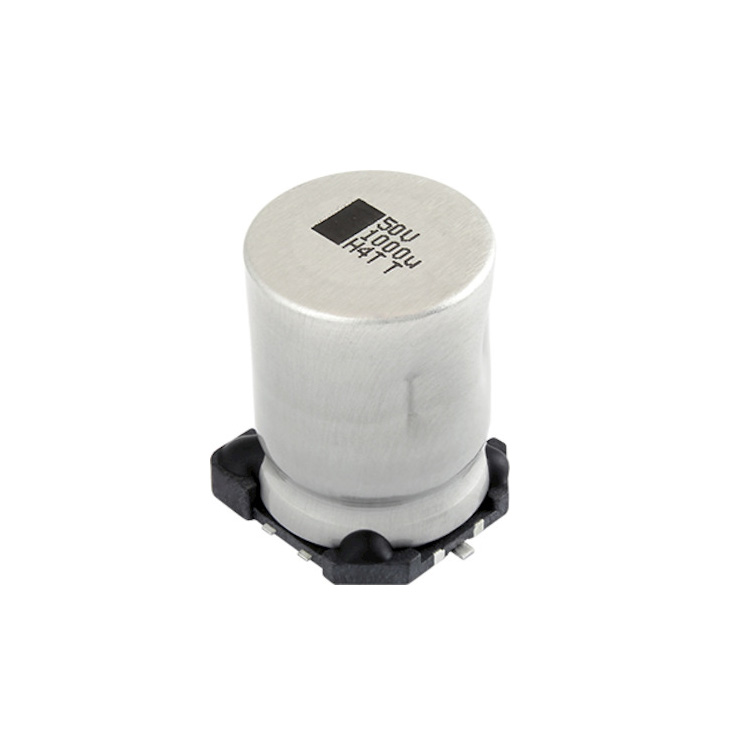

Technical Details

• Tolerance ±20%
• Package / Case Radial, Can - SMD
• Size / Dimension 0.630" Dia (16.00mm)
• Polarization Polar
• Mounting Type Surface Mount
• Operating Temperature -55°C ~ 125°C
• Applications Automotive, High Temperature Reflow
• Ratings AEC-Q200
• Lifetime @ Temp. 5000 Hrs @ 125°C
• Surface Mount Land Size 0.654" L x 0.654" W (16.60mm x 16.60mm)
• Height - Seated (Max) 0.689" (17.50mm)
• Capacitance 470 µF
• Voltage - Rated 63 V
• Impedance 100 mOhms
• Ripple Current @ Low Frequency 630 mA @ 100 Hz
• Ripple Current @ High Frequency 1.05 A @ 100 kHz
