Technical Details

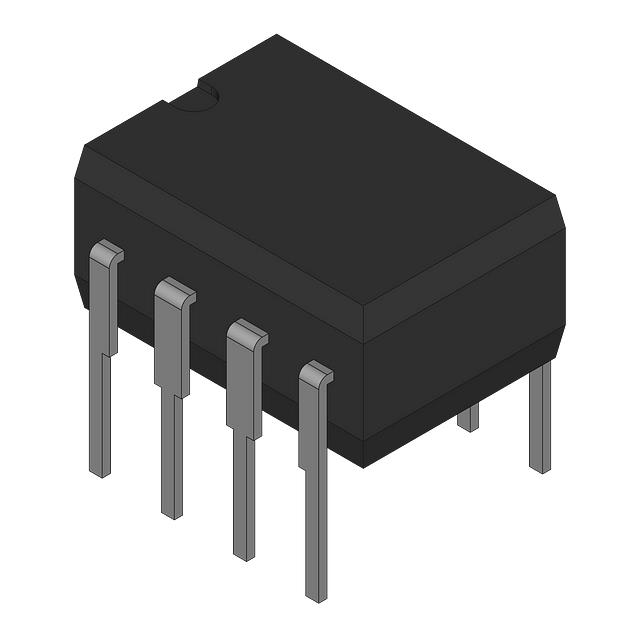

• Package / Case 8-CDIP (0.300", 7.62mm)
• Mounting Type Through Hole
• Amplifier Type J-FET
• Operating Temperature -55°C ~ 125°C
• Current - Supply 340µA (x2 Channels)
• Slew Rate 1.8V/µs
• Gain Bandwidth Product 1 MHz
• Current - Input Bias 5 pA
• Voltage - Input Offset 750 µV
• Supplier Device Package 8-CERDIP
• Number of Circuits 2
• Current - Output / Channel 15 mA
• -3db Bandwidth 1 MHz
• Voltage - Supply Span (Min) 9 V
• Voltage - Supply Span (Max) 36 V
