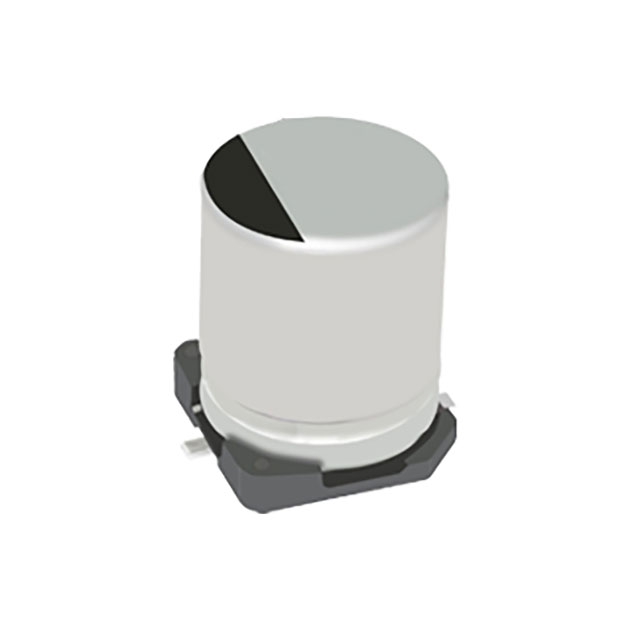

Technical Details

• Tolerance ±20%
• Package / Case Radial, Can - SMD
• Size / Dimension 0.315" Dia (8.00mm)
• Polarization Polar
• Mounting Type Surface Mount
• Operating Temperature -55°C ~ 105°C
• Applications Automotive
• Ratings AEC-Q200
• ESR (Equivalent Series Resistance) 1.3Ohm @ 100kHz
• Lifetime @ Temp. 2000 Hrs @ 105°C
• Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
• Height - Seated (Max) 0.425" (10.80mm)
• Capacitance 22 µF
• Voltage - Rated 80 V
• Ripple Current @ Low Frequency 84.5 mA @ 120 Hz
• Ripple Current @ High Frequency 130 mA @ 100 kHz
