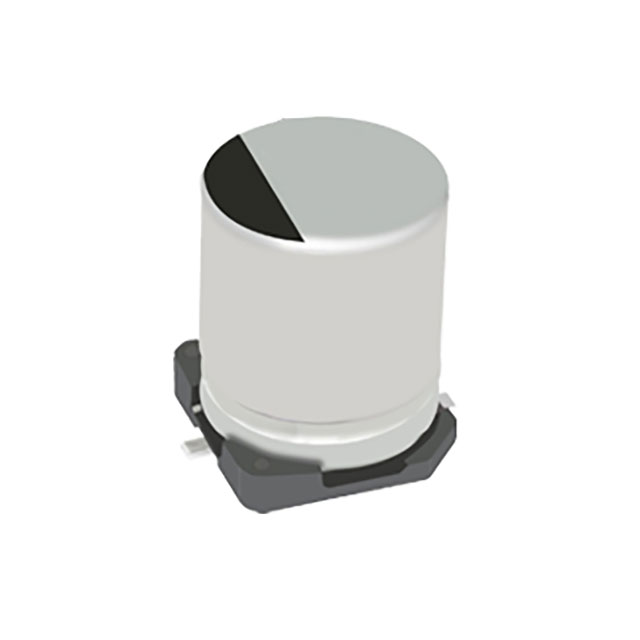

Technical Details

• Tolerance ±20%
• Package / Case Radial, Can - SMD
• Size / Dimension 0.157" Dia (4.00mm)
• Polarization Polar
• Mounting Type Surface Mount
• Operating Temperature -55°C ~ 105°C
• Applications Automotive
• Ratings AEC-Q200
• ESR (Equivalent Series Resistance) 1.35Ohm @ 100kHz
• Lifetime @ Temp. 2000 Hrs @ 105°C
• Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
• Height - Seated (Max) 0.240" (6.10mm)
• Capacitance 47 µF
• Voltage - Rated 16 V
• Ripple Current @ Low Frequency 58.5 mA @ 120 Hz
• Ripple Current @ High Frequency 90 mA @ 100 kHz
