Technical Details

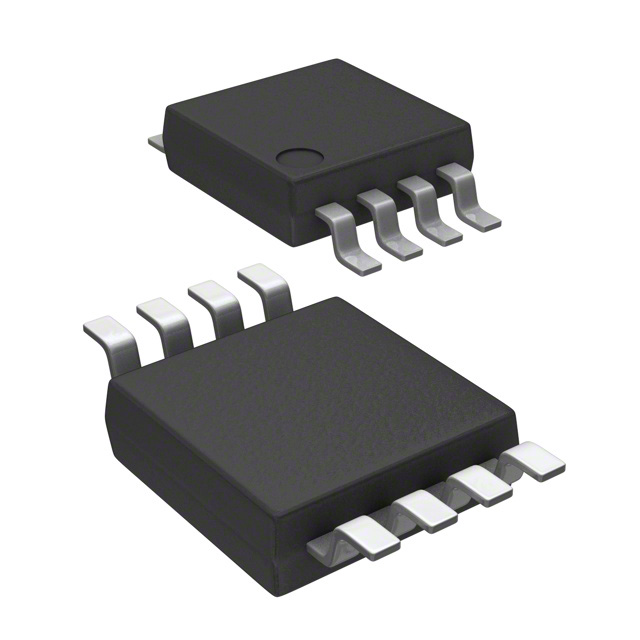

• Package / Case 8-TSSOP, 8-MSOP (0.118", 3.00mm Width) Exposed Pad
• Output Type Rail-to-Rail
• Mounting Type Surface Mount
• Amplifier Type General Purpose
• Operating Temperature -40°C ~ 85°C
• Current - Supply 330µA (x2 Channels)
• Slew Rate 0.7V/µs
• Gain Bandwidth Product 2 MHz
• Current - Input Bias 50 pA
• Voltage - Input Offset 500 µV
• Supplier Device Package 8-uMAX-EP|8-uSOP-EP
• Number of Circuits 2
• Current - Output / Channel 65 mA
• -3db Bandwidth 310 kHz
• Voltage - Supply Span (Min) 2.5 V
• Voltage - Supply Span (Max) 5.5 V
