Technical Details

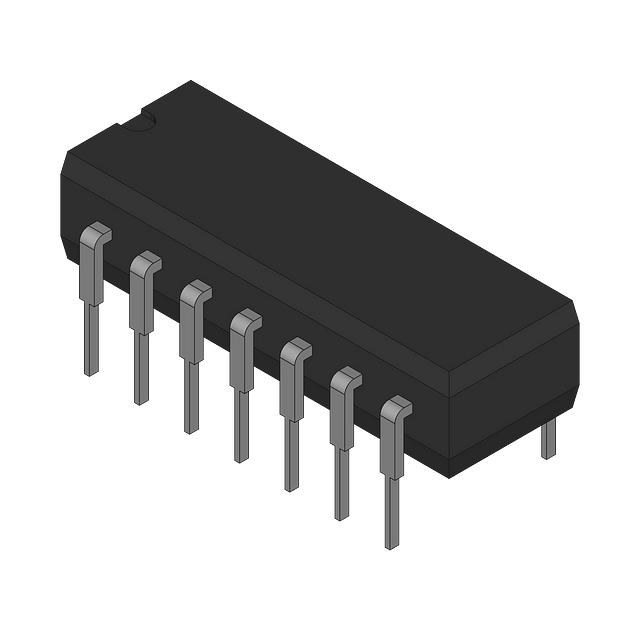

• Package / Case 14-DIP (0.300", 7.62mm)
• Mounting Type Through Hole
• Amplifier Type Current Feedback
• Operating Temperature -40°C ~ 85°C
• Current - Supply 28mA
• Slew Rate 2000V/µs
• Current - Input Bias 12 µA
• Supplier Device Package 14-PDIP
• Number of Circuits 1
• Current - Output / Channel 60 mA
• -3db Bandwidth 160 MHz
• Voltage - Supply Span (Min) 10 V
• Voltage - Supply Span (Max) 14 V
