Technical Details

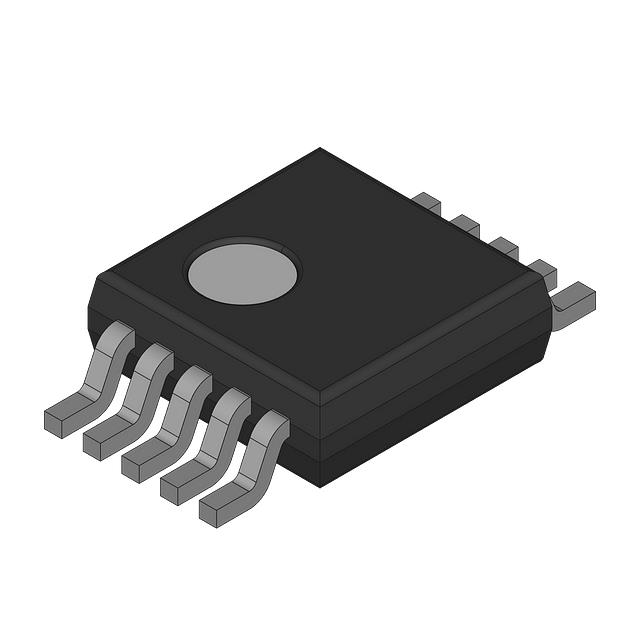

• Package / Case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
• Output Type Differential
• Mounting Type Surface Mount
• Amplifier Type Differential
• Operating Temperature -40°C ~ 85°C
• Current - Supply 12.5mA
• Slew Rate 1100V/µs
• Gain Bandwidth Product 200 MHz
• Current - Input Bias 14 µA
• Voltage - Input Offset 1.4 mV
• Supplier Device Package 10-MSOP
• Number of Circuits 1
• Current - Output / Channel 50 mA
• -3db Bandwidth 550 MHz
• Voltage - Supply Span (Min) 4.75 V
• Voltage - Supply Span (Max) 11 V
