Technical Details

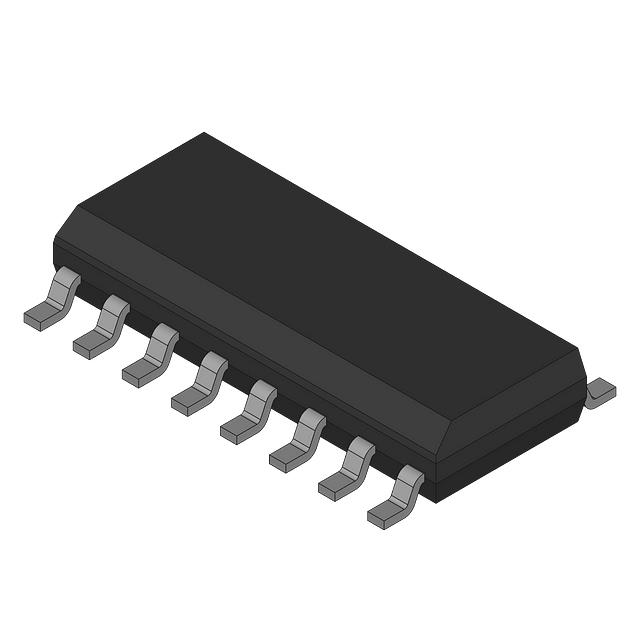

• Package / Case 16-SOIC (0.154", 3.90mm Width)
• Mounting Type Surface Mount
• Operating Temperature -40°C ~ 85°C (TA)
• On-State Resistance (Max) 70Ohm
• -3db Bandwidth 100MHz
• Supplier Device Package 16-SOIC
• Voltage - Supply, Single (V+) 2V ~ 12V
• Voltage - Supply, Dual (V±) ±2V ~ 6V
• Crosstalk -50dB @ 1MHz
• Switch Circuit SPST - NO
• Multiplexer/Demultiplexer Circuit 1:1
• Channel-to-Channel Matching (ΔRon) 5Ohm
• Switch Time (Ton, Toff) (Max) 14ns, 20ns
• Current - Leakage (IS(off)) (Max) 100nA
• Number of Circuits 4
