Technical Details

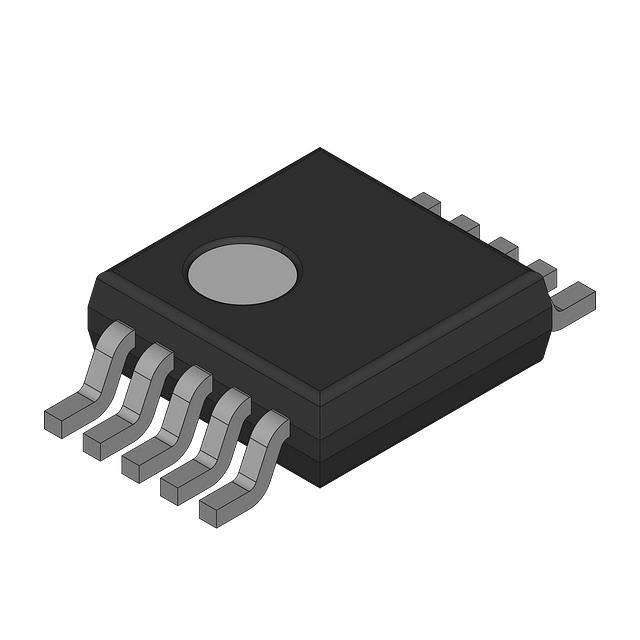

• Package / Case 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
• Mounting Type Surface Mount
• Operating Temperature -40°C ~ 85°C (TA)
• On-State Resistance (Max) 600mOhm
• Supplier Device Package 10-MSOP
• Voltage - Supply, Single (V+) 1.65V ~ 3.6V
• Charge Injection 95pC
• Crosstalk -95dB @ 100kHz
• Switch Circuit SPDT
• Multiplexer/Demultiplexer Circuit 2:1
• Channel-to-Channel Matching (ΔRon) 50mOhm
• Switch Time (Ton, Toff) (Max) 20ns, 12ns
• Channel Capacitance (CS(off), CD(off)) 115pF
• Current - Leakage (IS(off)) (Max) 2nA
• Number of Circuits 2
