Technical Details

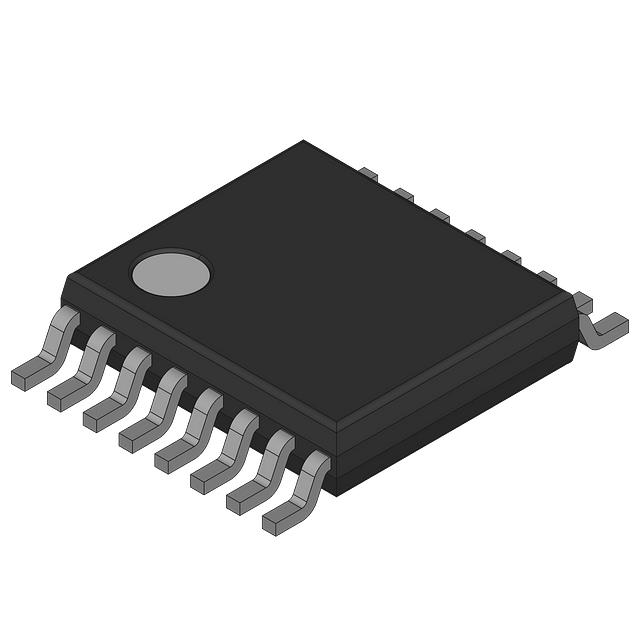

• Package / Case 16-TSSOP (0.173", 4.40mm Width)
• Mounting Type Surface Mount
• Operating Temperature -40°C ~ 85°C (TA)
• On-State Resistance (Max) 450mOhm
• Supplier Device Package 16-TSSOP
• Voltage - Supply, Single (V+) 1.65V ~ 3.6V
• Charge Injection -82pC
• Crosstalk -98dB @ 100kHz
• Switch Circuit SPDT
• Multiplexer/Demultiplexer Circuit 2:1
• Channel-to-Channel Matching (ΔRon) 40mOhm
• Switch Time (Ton, Toff) (Max) 17ns, 14ns
• Channel Capacitance (CS(off), CD(off)) 106pF
• Current - Leakage (IS(off)) (Max) 3nA
• Number of Circuits 4
