Technical Details

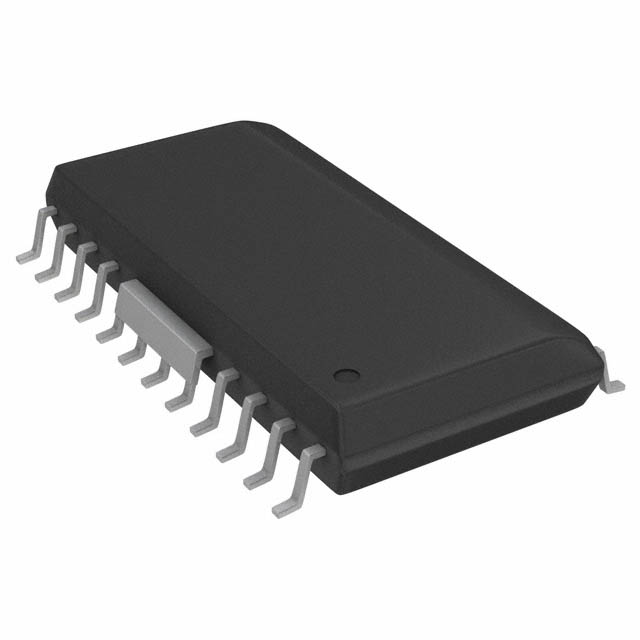

• Package / Case 24-SOIC (0.295", 7.50mm Width), 18 Leads, Fused Leads
• Output Type Differential
• Mounting Type Surface Mount
• Amplifier Type Differential
• Operating Temperature -40°C ~ 85°C
• Current - Supply 23mA
• Slew Rate 900V/µs
• Current - Input Bias 10 µA
• Voltage - Input Offset 5 mV
• Supplier Device Package 24-SOIC w/Batwing
• Number of Circuits 2
• Current - Output / Channel 500 mA
• -3db Bandwidth 120 MHz
• Voltage - Supply Span (Min) 10 V
• Voltage - Supply Span (Max) 36 V
