Technical Details

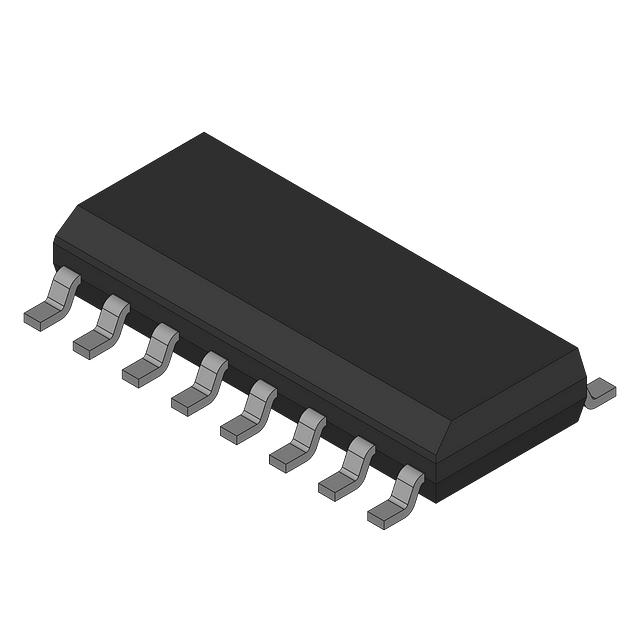

• Package / Case 16-SOIC (0.209", 5.30mm Width)
• Mounting Type Surface Mount
• Operating Temperature -40°C ~ 85°C (TA)
• On-State Resistance (Max) 100Ohm
• -3db Bandwidth 35MHz
• Supplier Device Package 16-SOP
• Voltage - Supply, Single (V+) 2V ~ 6V
• Voltage - Supply, Dual (V±) ±2V ~ 6V
• Crosstalk -50dB @ 1MHz
• Multiplexer/Demultiplexer Circuit 8:1
• Channel-to-Channel Matching (ΔRon) 15Ohm
• Switch Time (Ton, Toff) (Max) 41ns, 32ns
• Channel Capacitance (CS(off), CD(off)) 5pF, 90pF
• Current - Leakage (IS(off)) (Max) 100nA
• Number of Circuits 1
