Technical Details

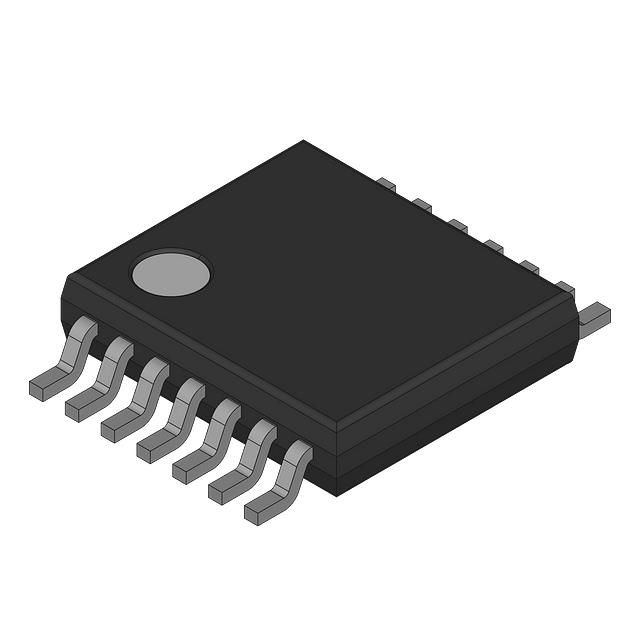

• Package / Case 14-TSSOP (0.173", 4.40mm Width)
• Output Type Rail-to-Rail
• Mounting Type Surface Mount
• Amplifier Type Voltage Feedback
• Operating Temperature -40°C ~ 85°C
• Current - Supply 2.5mA (x4 Channels)
• Slew Rate 55V/µs
• Gain Bandwidth Product 22 MHz
• Current - Input Bias 2 nA
• Voltage - Input Offset 3 mV
• Supplier Device Package 14-TSSOP
• Number of Circuits 4
• Current - Output / Channel 65 mA
• -3db Bandwidth 40 MHz
• Voltage - Supply Span (Min) 4.5 V
• Voltage - Supply Span (Max) 16.5 V
