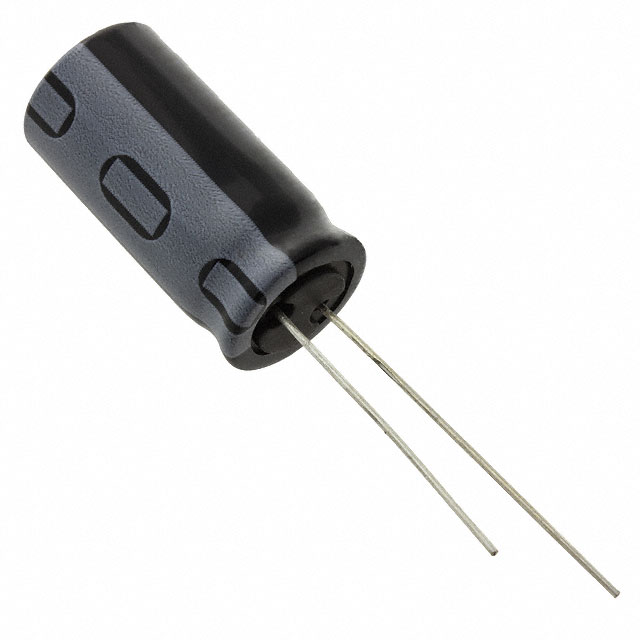

Technical Details

• Tolerance ±20%
• Package / Case Radial, Can
• Size / Dimension 0.394" Dia (10.00mm)
• Polarization Polar
• Mounting Type Through Hole
• Operating Temperature -55°C ~ 125°C
• Applications Automotive
• Lead Spacing 0.197" (5.00mm)
• Ratings AEC-Q200
• ESR (Equivalent Series Resistance) 74mOhm @ 10kHz
• Lifetime @ Temp. 3500 Hrs @ 125°C
• Height - Seated (Max) 0.866" (22.00mm)
• Capacitance 330 µF
• Voltage - Rated 35 V
• Impedance 62 mOhms
• Ripple Current @ High Frequency 1.205 A @ 100 kHz
