Technical Details

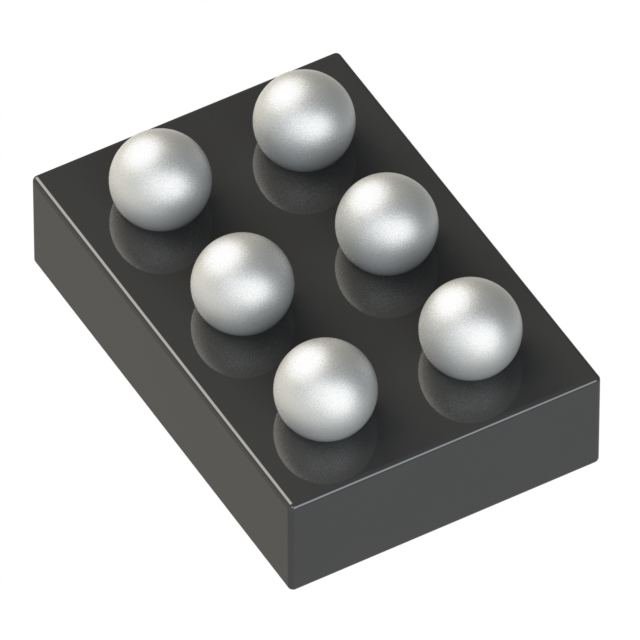

• Package / Case 6-XFBGA, WLBGA
• Mounting Type Surface Mount
• Operating Temperature -40°C ~ 85°C (TA)
• On-State Resistance (Max) 330mOhm
• -3db Bandwidth 270MHz
• Supplier Device Package 6-WLP (1.31x0.83)
• Voltage - Supply, Single (V+) 1.6V ~ 5.5V
• Crosstalk -85dB @ 100kHz
• Switch Circuit DPST
• Multiplexer/Demultiplexer Circuit 2:1
• Channel-to-Channel Matching (ΔRon) 3mOhm
• Switch Time (Ton, Toff) (Max) 1.7ms, 13.5ms (Typ)
• Channel Capacitance (CS(off), CD(off)) 14pF
• Current - Leakage (IS(off)) (Max) 100nA
• Number of Circuits 1
