Technical Details

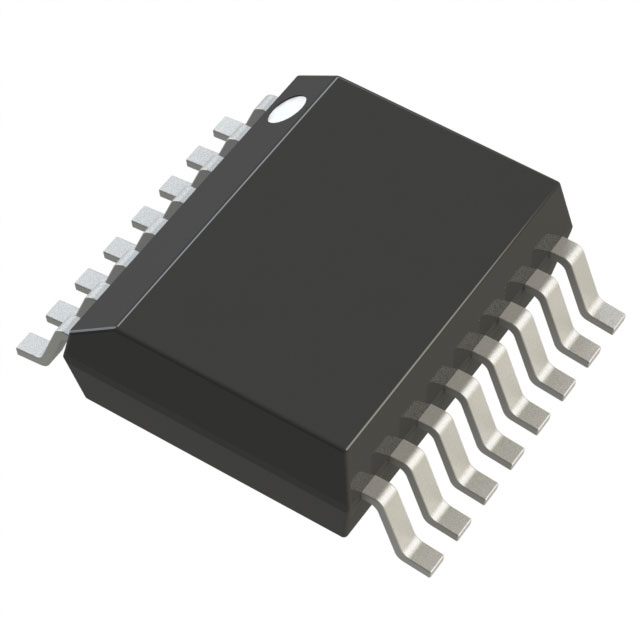

• Package / Case 16-SSOP (0.154", 3.90mm Width)
• Mounting Type Surface Mount
• Operating Temperature 0°C ~ 70°C (TA)
• On-State Resistance (Max) 120Ohm
• Supplier Device Package 16-QSOP
• Voltage - Supply, Single (V+) 2V ~ 12V
• Voltage - Supply, Dual (V±) ±2V ~ 6V
• Charge Injection 2pC
• Crosstalk -90dB @ 100kHz
• Switch Circuit SPST - NO
• Multiplexer/Demultiplexer Circuit 1:1
• Channel-to-Channel Matching (ΔRon) 1Ohm
• Switch Time (Ton, Toff) (Max) 110ns, 90ns
• Channel Capacitance (CS(off), CD(off)) 3.5pF, 3pF
• Current - Leakage (IS(off)) (Max) 1nA
• Number of Circuits 4
