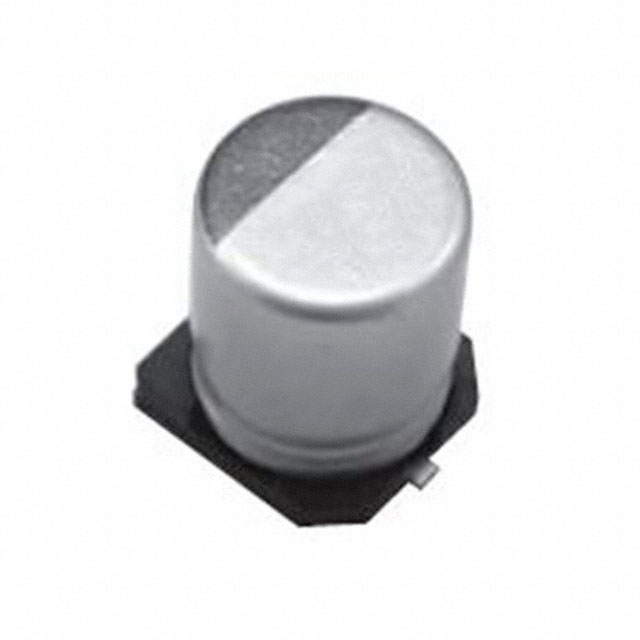

Technical Details

• Tolerance ±20%
• Package / Case Radial, Can - SMD
• Size / Dimension 0.709" Dia (18.00mm)
• Polarization Polar
• Mounting Type Surface Mount
• Operating Temperature -40°C ~ 150°C
• Applications Automotive
• Ratings AEC-Q200
• ESR (Equivalent Series Resistance) 84mOhm @ 100kHz
• Lifetime @ Temp. 1000 Hrs @ 150°C
• Surface Mount Land Size 0.748" L x 0.748" W (19.00mm x 19.00mm)
• Height - Seated (Max) 0.866" (22.00mm)
• Capacitance 1200 µF
• Voltage - Rated 35 V
• Ripple Current @ Low Frequency 792 mA @ 120 Hz
• Ripple Current @ High Frequency 1.32 A @ 100 kHz
