Technical Details

• Tolerance ±20%

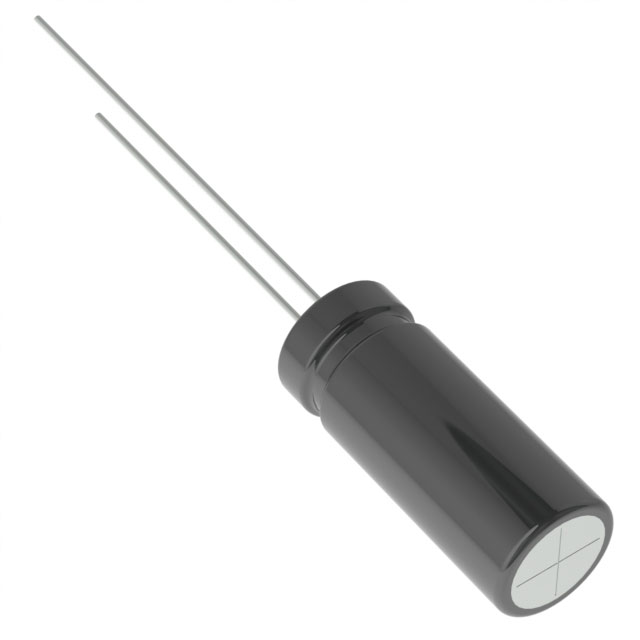

• Package / Case Radial, Can
• Size / Dimension 0.197" Dia (5.00mm)
• Polarization Polar
• Mounting Type Through Hole
• Operating Temperature -40°C ~ 105°C
• Applications General Purpose
• Lead Spacing 0.079" (2.00mm)
• Lifetime @ Temp. 10000 Hrs @ 105°C
• Height - Seated (Max) 0.492" (12.50mm)
• Capacitance 2.2 µF
• Voltage - Rated 50 V
• Ripple Current @ Low Frequency 14.7 mA @ 120 Hz
• Ripple Current @ High Frequency 35 mA @ 100 kHz
