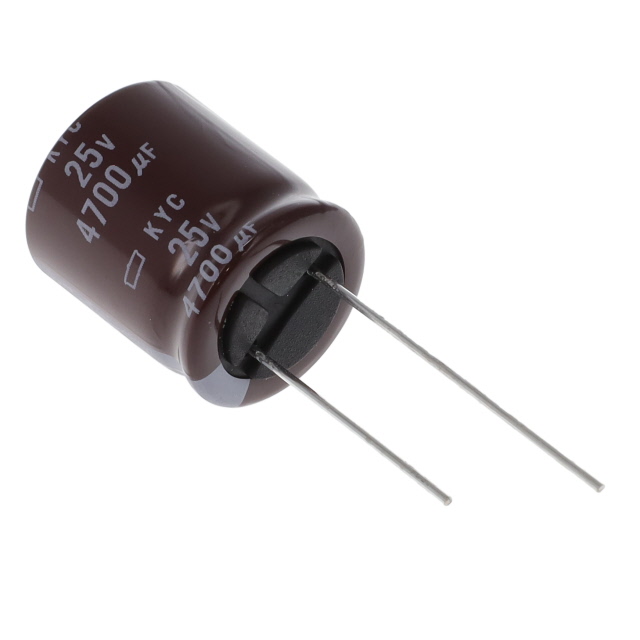

Technical Details

• Tolerance ±20%
• Package / Case Radial, Can
• Size / Dimension 0.709" Dia (18.00mm)
• Polarization Polar
• Mounting Type Through Hole
• Operating Temperature -40°C ~ 105°C
• Applications Automotive
• Lead Spacing 0.295" (7.50mm)
• Ratings AEC-Q200
• ESR (Equivalent Series Resistance) 37mOhm @ 100kHz
• Lifetime @ Temp. 5000 Hrs @ 105°C
• Height - Seated (Max) 0.846" (21.50mm)
• Capacitance 4700 µF
• Voltage - Rated 25 V
• Ripple Current @ Low Frequency 2.295 A @ 120 Hz
• Ripple Current @ High Frequency 2.7 A @ 100 kHz
