Technical Details

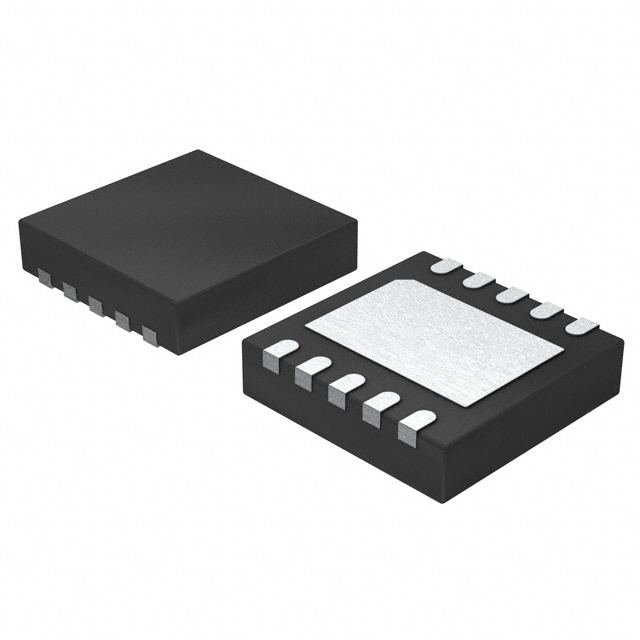

• Package / Case 10-WFDFN Exposed Pad
• Mounting Type Surface Mount
• Operating Temperature -40°C ~ 85°C (TA)
• On-State Resistance (Max) 3Ohm
• -3db Bandwidth 300MHz
• Supplier Device Package 10-TDFN (3x3)
• Voltage - Supply, Single (V+) 1.8V ~ 5.5V
• Charge Injection 5pC
• Crosstalk -80dB @ 10MHz
• Switch Circuit SPDT - NO/NC
• Multiplexer/Demultiplexer Circuit 2:1
• Channel-to-Channel Matching (ΔRon) 100mOhm
• Switch Time (Ton, Toff) (Max) 80ns, 40ns
• Channel Capacitance (CS(off), CD(off)) 9pF
• Current - Leakage (IS(off)) (Max) 500pA
• Number of Circuits 2
