Technical Details

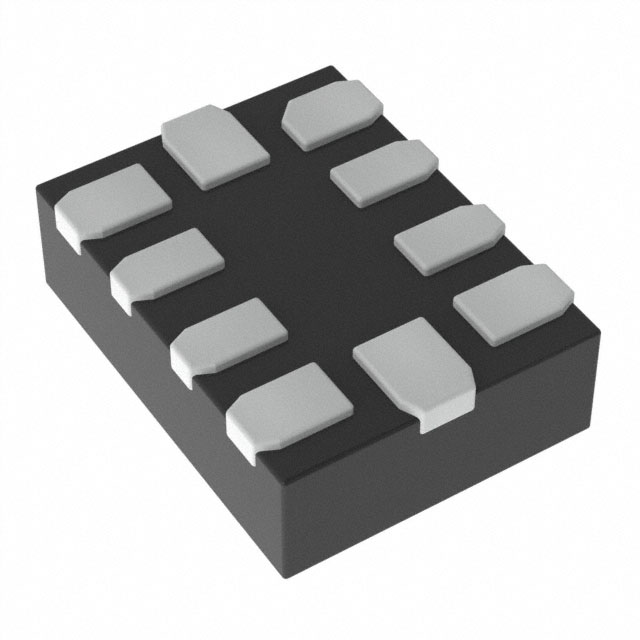

• Package / Case 10-UFQFN
• Mounting Type Surface Mount
• Operating Temperature -40°C ~ 85°C (TA)
• On-State Resistance (Max) 8Ohm
• -3db Bandwidth 1GHz
• Supplier Device Package 10-UQFN (1.5x2)
• Voltage - Supply, Single (V+) 2.7V ~ 6V
• Voltage - Supply, Dual (V±) ±2.7V ~ 6V
• Crosstalk -35dB @ 240MHz
• Switch Circuit SPDT
• Multiplexer/Demultiplexer Circuit 2:1
• Channel-to-Channel Matching (ΔRon) 500mOhm
• Switch Time (Ton, Toff) (Max) 100µs, 50ns (Typ)
• Channel Capacitance (CS(off), CD(off)) 5pF, 9pF
• Current - Leakage (IS(off)) (Max) 1µA
• Number of Circuits 1
