Technical Details

• Tolerance ±20%

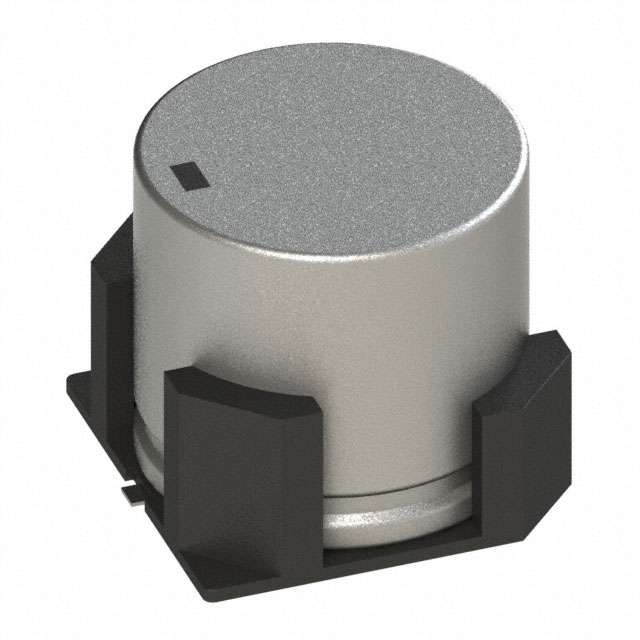

• Package / Case Radial, Can - SMD
• Size / Dimension 0.709" Dia (18.00mm)
• Polarization Polar
• Mounting Type Surface Mount
• Operating Temperature -55°C ~ 105°C
• Applications Automotive
• Ratings AEC-Q200
• ESR (Equivalent Series Resistance) 153mOhm @ 100kHz
• Lifetime @ Temp. 5000 Hrs @ 105°C
• Surface Mount Land Size 0.748" L x 0.748" W (19.00mm x 19.00mm)
• Height - Seated (Max) 0.673" (17.10mm)
• Capacitance 330 µF
• Voltage - Rated 100 V
• Ripple Current @ Low Frequency 687.75 mA @ 120 Hz
• Ripple Current @ High Frequency 917 mA @ 100 kHz
